Choosing the right rotary heat press comes down to a few core questions: what you print, how you run production, and how fast you need to grow. For roll and piece production, you should look at working width, drum diameter, workflow layout (table + collection), tension control and heating system, then match them to your fabric mix and volumes. When those pieces line up, the machine will feel “easy to run” instead of constantly fighting your operators and deadlines.
Before comparing models and prices, write down three things:
Product mix – flags, home textiles, sportswear, fashion panels, finished garments, or a mix.
Material format – mostly rolls, mostly cut pieces, or a true 50/50 mix.
Throughput target – current daily output and where you want to be in 1–2 years.
A factory that prints long rolls of flag fabric all day needs a different rotary heat press than a shop that handles cut sportswear panels and finished garments. The first needs high speed roll-to-roll stability; the second needs a good working table layout and easy loading/unloading.
Once you’re clear on this, the technical choices become much simpler.
Working width is straightforward: it must cover your widest fabric or paper, plus some margin for edge tracking. If you print 1.6 m wide, buying exactly 1.6 m working width leaves no safety margin for edge wandering or slightly oversized rolls. It’s usually safer to go half a size up.
Drum diameter is about contact time and speed. A larger drum:
Gives the substrate more time in contact with the heated surface at a given speed.
Allows you to keep temperature comfortable for the fabric while still achieving good transfer or fixation.
Typically supports higher linear speed for mass production.
For mixed roll and piece production, many buyers choose a mid-to-large drum: fast enough for volume, but not so huge that the machine becomes difficult to install or run.
| Feature | Roll-to-Roll Only | Piece Production | Both Roll & Piece Production |
|---|---|---|---|
| Best For | Large-scale continuous production of fabric rolls (e.g. flags, banners, signage) | Small to medium production runs of cut pieces (e.g. sportswear, fashion, home textiles) | Mixed production environments (e.g. flags + sportswear, home textiles + advertising fabric) |
| Layout | No table, only unwinding and rewinding rolls | Requires a working table for placing and loading cut pieces | Table + roll system for both handling rolls and cut pieces |
| Speed | High-speed operation for long runs | Slower than roll-to-roll, with manual loading/unloading | Balanced speed, accommodating both high-speed roll jobs and moderate piece production |
| Flexibility | Limited to roll-based production | Limited to cut-piece jobs, requiring frequent adjustments | Maximum flexibility to handle both rolls and pieces without needing separate machines |
| Fabric Types | Ideal for continuous, long, unwinding rolls | Ideal for smaller pieces, such as garments and panels | Suitable for a mix of rolls (flags, banners) and cut pieces (sportswear, home textiles) |
| Setup Time | Minimal setup time, continuous production | Moderate setup time for loading/unloading pieces | Moderate setup time; switching between roll and piece jobs is easier but still requires adjustments |
| Operator Requirements | Single operator can manage high-volume jobs | Requires more hands-on attention, especially for larger cut pieces | A balance of manual and automated processes for both roll and piece handling |
| Ideal Machine Choice | Rotary heat press with unwind/rewind and minimal table | Rotary heat press with working table and precise control for pieces | Rotary heat press with both table and roll-to-roll system (e.g., Eastsign MOT/BOT-H Series) |
Rotary heat presses fall roughly into three categories:
Roll-to-roll only – for continuous rolls of fabric; no or very limited table.
Piece-oriented with table – focus on cut pieces, panels, ready-made garments.
Multifunction with table + roll system – can handle both rolls and pieces.
If your business is truly mixed – for example, you print both full rolls of polyester for flags and cut pieces for sportswear – a multifunction rotary heat press with a working table is usually the most efficient choice.

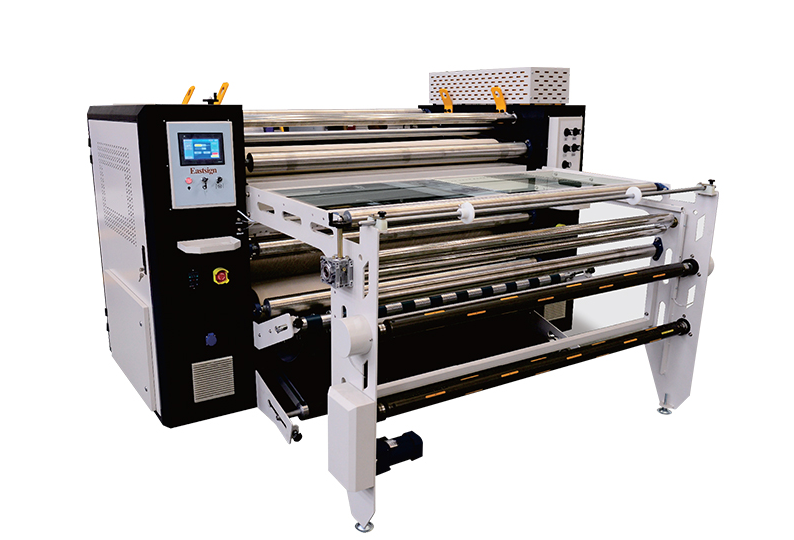

Eastsign’s MOT/BOT-H Series is a typical example of this approach. It combines:
An oil-heated drum for continuous roll jobs.
A practical working table in front of the drum for loading cut pieces or finished garments.
Feeding and take-up systems that support both roll-to-roll and piece-by-piece workflows.
This kind of design lets you keep one main machine busy all day instead of splitting jobs across multiple smaller presses.
For roll and piece production, web handling is where a “cheap” machine often shows its limits. Look closely at:
☑ Independent tension control for fabric, transfer paper and protection paper.
☑ Number and type of unwind/rewind shafts – more shafts with proper brakes and drives give you better control over each layer.
☑ Edge guiding and blanket control – to prevent wandering, skew and off-tracking.
Good tension control reduces:
Ghosting and shadowing
Wrinkles and paper creases
Misalignment between print and fabric
Eastsign’s rotary heat presses are designed with separate shafts and controls for each web, plus blanket tension systems that keep pressure stable over long runs. That’s the sort of detail that doesn’t show in a brochure headline, but your production team will feel it every day.
For consistent results, you want a machine that can hold temperature across the full width and over long shifts.
Key points to check:
Heating medium – oil-filled drums are common in industrial rotary presses because they distribute heat evenly and retain it well.
Temperature range and control accuracy – enough range for your inks and fabrics, with fine adjustment and reliable sensors.
Power control – the ability to reduce power once the machine is at temperature helps control energy costs.
Safety functions – over-temperature protection, alarms and controlled cooldown.
On Eastsign’s high-end models like the MOT/BOT-H Series, the oil-heated drum, controlled heating power and safety systems are designed for textile factories that run multiple shifts and can’t afford constant temperature problems.
Two machines with similar specs can behave very differently in your workshop simply because of layout.
Table length and position – A longer front table is more comfortable for arranging panels and finished garments.
Where the printed fabric is collected – In front (MOT-style) is convenient when one operator both loads and unloads; rear collection (BOT-style) can be better if fabric moves to sewing or inspection behind the machine.
Access for maintenance – You should be able to reach bearings, chains, belts and electrical cabinets without dismantling half the machine.
Eastsign offers both front-collection and rear-collection layouts in the MOT/BOT-H Series so factories can match the machine to their actual material flow instead of redesigning the workshop around the press.
The right rotary heat press is not just a heater and a drum – it is the heart of your sublimation or fixation line. When it matches your products, your workflow and your growth plan, it becomes one of the most reliable investments in your textile business.
If you are interested in purchasing or distributing products such as the MOT/BOT-H Series rotary heat press with table, please contact us. We will provide you with suitable solutions.
