A sublimation heat press applies controlled heat, time and pressure to transfer dye from printed sublimation paper into a compatible polyester or polymer-coated substrate. It may be a compact flatbed press for individual items, a large-format flatbed press for cut panels or a rotary heat press for continuous fabric production.
You do not always need a machine marketed exclusively as a “sublimation heat press.” A heat press can be used for sublimation when it provides the working format, temperature range, pressure control and heating uniformity required by the substrate and transfer process. Eastsign’s heat press range includes clamshell, flatbed and rotary configurations for different product formats and production volumes.
The best press therefore depends on what you are producing. A shop pressing individual garments has different equipment requirements from a factory transferring printed paper onto continuous rolls of polyester fabric.
A heat press is the equipment; sublimation is the transfer process.
Sublimation works best with compatible polyester materials or polymer-coated substrates.
Flatbed presses suit individual flat products and cut pieces.
Rotary heat presses suit continuous fabric rolls and higher-volume textile production.
Time and temperature must follow the ink, paper, substrate and equipment instructions.
Even heat, stable pressure and controlled material movement are essential for repeatable results.
The actual production format should determine the machine—not the product name alone.
Sublimation printing normally begins with an image printed onto transfer paper using compatible sublimation ink. During pressing, heat activates the dye so that it transfers from the paper and diffuses into the polymer structure of the receiving material.
A simplified workflow is:
Create and prepare the artwork.
Print the mirrored image onto sublimation transfer paper.
Position the printed paper against the compatible substrate.
Load the paper and substrate into the heat press.
Apply the required heat, time and pressure.
Remove the material according to the process instructions.
Inspect the transfer for color, registration and surface quality.
The complete workflow also depends on compatible ink, transfer paper and protection paper. Review Eastsign’s dye sublimation consumables when planning the paper and material path for your heat press.
The exact settings are not universal. They depend on the ink, transfer paper, substrate, press construction and required result. Always begin with the recommendations provided by the material and ink suppliers, then validate the settings through controlled production tests.
Not necessarily.
A standard heat press may be suitable for sublimation if it can provide:
The temperature range required by the selected ink and substrate
Uniform heat across the complete transfer area
Stable and controllable pressure
Accurate time control
A working area large enough for the transfer
A loading method that prevents the paper and substrate from shifting
A press does not become suitable for sublimation simply because “sublimation” appears in its product name. In the same way, a general heat press should not be assumed suitable until its temperature stability, heating uniformity, pressure and working format have been evaluated.
For continuous rolls of polyester fabric, the process usually requires a rotary heat press rather than a small flatbed or clamshell machine.
Polyester is the primary textile used in dye-sublimation transfer because the dye can bond with the polymer structure under controlled heat.
Common applications include:
Sportswear
Team jerseys
Fashion textiles
Flags
Soft signage
Exhibition graphics
Curtains
Cushions
Selected home textiles
Promotional fabrics
The fiber content, fabric construction, coating and finishing treatment can affect color and transfer behavior. Confirm the material rather than relying only on a general “polyester” label.
Sublimation may also be used on compatible hard products with a suitable polymer coating, including selected:
Metal panels
Ceramic products
Display panels
Photo products
Promotional blanks
Compatibility depends on the coating and the recommended pressing process. An uncoated product made from a generally suitable base material may still fail to accept sublimation dye correctly.
Untreated natural fibers such as 100% cotton do not normally accept sublimation dye in the same way as polyester. Dark substrates can also limit the visibility of sublimation colors because conventional sublimation inks are not opaque.
Some products may be prepared with compatible coatings or intermediary materials, but these are different production routes and should not be treated as direct polyester sublimation.
A clamshell heat press opens vertically and presses the upper heated platen onto the lower platen. This structure is commonly used for individual flat products, garment panels, samples and short production runs.
Typical applications include:
Individual T-shirts
Small flat textile items
Garment panels
Samples
Short production runs
Work areas with limited floor space
The main selection factors include platen size, heat uniformity, pressure adjustment and clearance for the intended product.
If your production focuses on individual garments rather than continuous fabric rolls, see our guide to choosing a sublimation heat press for T-shirts.
A swing-away press moves the upper platen away from the loading area. A draw-style press allows the lower platen to slide outward.
These designs can improve access when positioning:
Garment panels
Coated metal sheets
Tiles
Thicker flat products
Transfers requiring careful alignment
Confirm the available workspace because these machines may require more operating clearance than a clamshell press.
A flatbed heat press processes flat materials or cut textile pieces in batches. Larger configurations may be considered for garment panels, display graphics, coated sheets and other applications that require a controlled pressing surface.
It may be considered for:
Large garment panels
Cut fabric pieces
Display graphics
Rigid coated sheets
Short or medium production runs
Important factors include the working area, loading method, heating uniformity and the ability to maintain consistent pressure across the complete transfer.
A rotary heat press uses a heated drum and blanket system to apply heat and pressure as fabric and transfer paper move through the machine. This structure is normally evaluated for continuous fabric rolls, repeated textile panels and higher-volume sublimation production.
Common applications include:
Continuous polyester fabric rolls
Sportswear production
Fashion textiles
Flags and banners
Soft signage
Home textiles
Repeated textile panels
Rotary equipment is better suited to continuous production than a small flatbed press. Model selection should consider working width, drum configuration, material feeding, paper path, tension control, collection method and expected production volume.
Cylindrical and shaped products normally require equipment or attachments designed for the product geometry.
A flat platen cannot automatically provide consistent contact around a mug, bottle or other curved object. Confirm the product shape, diameter, coating and required fixture before selecting specialty equipment.
| Production Requirement | Flatbed Heat Press | Rotary Heat Press |
|---|---|---|
| Production method | Batch pressing | Continuous or repeated drum-based processing |
| Material format | Individual products, sheets or cut pieces | Roll fabric, repeated panels or mixed roll-and-piece workflows |
| Loading | Manual or assisted placement | Guided feeding through a heated drum system |
| Typical volume | Samples, short runs and batch work | Medium- to high-volume textile production |
| Main selection factors | Platen size, heat uniformity, pressure and access | Working width, drum, speed, tension and material path |
| Typical applications | T-shirts, panels and compatible hard substrates | Sportswear, flags, soft signage, fashion and home textiles |
Neither design is automatically better. The correct choice depends on the incoming material and required production flow.
A company producing individual coated panels may benefit from a flatbed press, while a textile producer transferring full rolls of polyester fabric normally needs a rotary system. For a closer look at continuous drum-based transfer, read What Is a Calendar Press?
Begin with the actual product:
Individual garment
Cut fabric panel
Rigid coated sheet
Continuous fabric roll
Repeated textile pieces
Cylindrical product
This determines whether the workflow requires a flatbed, rotary or specialty press.
Measure the largest transfer area or material width expected in regular production. Do not select the press based only on the average job if larger products are part of the planned workload.
For roll production, confirm both the fabric width and transfer-paper width.
A small press may be practical for samples and personalized products but inefficient for continuous textile work. Consider:
Pieces per shift
Roll length
Number of job changes
Loading time
Required inspection points
Operator involvement
Downstream sewing or finishing
Uneven heating can cause weak color, incomplete transfer or visible differences across the image.
Evaluate the complete working area, especially when producing large graphics. A temperature shown on the control panel does not by itself prove uniform surface temperature.
Pressure must be suitable and repeatable for the substrate and transfer process. Excessive or uneven pressure can contribute to material marks or inconsistent results, while insufficient contact may prevent complete transfer.
The appropriate pressure should be established through the material and process requirements rather than a universal “more pressure is better” rule.
For cut pieces, consider loading access and alignment.
For continuous rolls, review:
Fabric feeding
Transfer-paper feeding
Protection-paper path
Unwinding and rewinding
Web tension
Tracking or alignment
Collection position
Operator access
Material movement can affect registration and color consistency even when the heat setting is correct.
Before ordering, confirm:
Machine dimensions
Loading and unloading space
Power supply
Compressed-air requirements, where applicable
Ventilation
Operator clearance
Material storage
Maintenance access
The machine must fit the complete production environment, not only the available floor area.
The machine should maintain the required process temperature consistently during production.
Heat should be distributed across the working area or drum to reduce differences between the center and edges of the transfer.
The pressure system should match the product format and remain repeatable across the transfer area.
Flatbed presses rely on controlled pressing time. Rotary presses use working speed and drum contact to control dwell time.
The loading and feeding system should keep the paper and substrate aligned throughout the transfer.
Controls, loading access, emergency functions and routine maintenance should suit the operator and production environment.
Before purchase, confirm the current specification, operating requirements, available documentation and support scope for the selected model.
Possible causes include:
Incorrect temperature or dwell time
Wrong side of the transfer paper
Incompatible substrate
Insufficient contact
Ink, paper or profile mismatch
Moisture in the material
Uneven heating
Change one controlled variable at a time and compare the result against an approved reference.
Ghosting can happen when transfer paper moves while the dye is still active.
Check:
Paper fixation
Loading and unloading movement
Fabric or paper tension
Rewinding stability
Handling during removal
Static or material movement
If one area transfers differently from another, inspect:
Heat uniformity
Pressure distribution
Material thickness
Platen or drum condition
Paper and fabric contact
Wrinkles or trapped moisture
Possible causes include excessive heat, excessive dwell time, incompatible material, contamination or pressure marks.
Do not assume that a higher temperature will improve transfer quality. Follow the tested process window for the substrate.
Movement can cause misregistration, wrinkles and ghosting. For rotary production, check the independent paths and tension of the fabric, transfer paper and protection paper.
A heat press is a machine. Sublimation is a transfer process.
Heat presses may be used for sublimation as well as other compatible transfer methods. The difference lies in the ink, transfer media, substrate and operating process—not simply in the name printed on the machine.
A press used for heat-transfer vinyl, for example, may also be technically capable of sublimation if it provides the required working size, heat uniformity, pressure and control. However, the consumables, substrate and settings will be different.
For a more detailed comparison, read our guide to heat press vs sublimation heat press.
Eastsign’s industrial heat press range is primarily relevant to textile production rather than small mug or hobby applications.

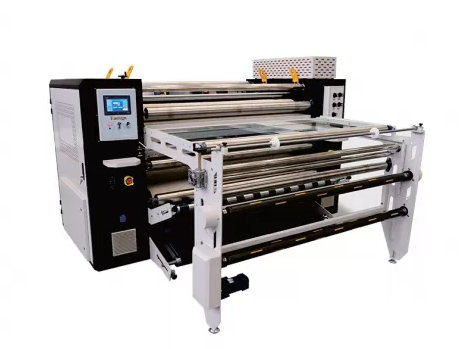

The MOT/BOT-H rotary heat press is designed for businesses processing both roll materials and cut pieces.
It may be considered for:
Sportswear and team jerseys
Fashion and apparel panels
Flags and soft signage
Home textiles
Mixed roll and piece production
The working-table and collection layout should be selected according to the material format, operator position and downstream production flow.
The MOT-F rotary heat press is another multifunction route for businesses that need to handle both roll materials and cut pieces.
Before selecting a model, provide:
Fabric type
Fabric width
Transfer-paper width and weight
Roll or piece format
Expected production volume
Workshop layout
Required collection direction
For continuous polyester fabric, compare the available rotary heat press machines according to working width, drum configuration, feeding system, tension control and output requirements.
Do not select a rotary heat press from working width alone. The complete paper and fabric path should match the actual production workflow.
A regular heat press may be suitable if it provides the required temperature range, heat uniformity, pressure control, working area and time control. Confirm the equipment against the substrate and transfer process rather than relying only on the machine name.
There is no single setting for every application. The required temperature depends on the ink, transfer paper, substrate, coating and equipment. Start with the suppliers’ instructions and confirm the result through testing.
Direct dye sublimation is generally intended for polyester or compatible polymer surfaces. Untreated cotton does not accept sublimation dye in the same way. Alternative coatings or transfer systems represent different processes and should be evaluated separately.
Conventional sublimation inks are not opaque, so the substrate color affects the visible result. Light-colored polyester is generally more suitable for direct sublimation.
Not universally. A rotary press is better suited to continuous rolls and higher-volume textile workflows. A flatbed press is often more practical for individual products, rigid panels, samples and batch production.
The terms are often used for related drum-based heat-transfer equipment. In textile sublimation, both may refer to a system that transfers designs through a heated rotating drum. The exact machine configuration and material path should still be checked.
Choose a working width that accommodates the maximum fabric and transfer-paper width required in production. Also consider loading, edge margins, feeding and future job requirements.
Provide the material, working width, transfer-paper specification, roll or piece format, expected output, power supply, destination country and available workshop space. Photos or a workflow drawing can help clarify the application.
Before choosing a heat press for sublimation printing, confirm:
Product or fabric type
Polyester content or polymer coating
Maximum transfer size
Roll or piece production
Required production volume
Flatbed or rotary workflow
Heat and pressure requirements
Paper and fabric feeding method
Rewinding or collection method
Power and utility requirements
Available floor space
Material testing and acceptance criteria
Technical documentation and support scope
The best sublimation heat press is not simply the machine with the highest temperature or largest working width. It is the machine that matches the substrate, production format, required output and daily operating workflow.
If your work involves continuous polyester rolls, sportswear panels, soft signage or mixed roll-and-piece production, send Eastsign your material and production details for a suitable rotary heat press recommendation.
