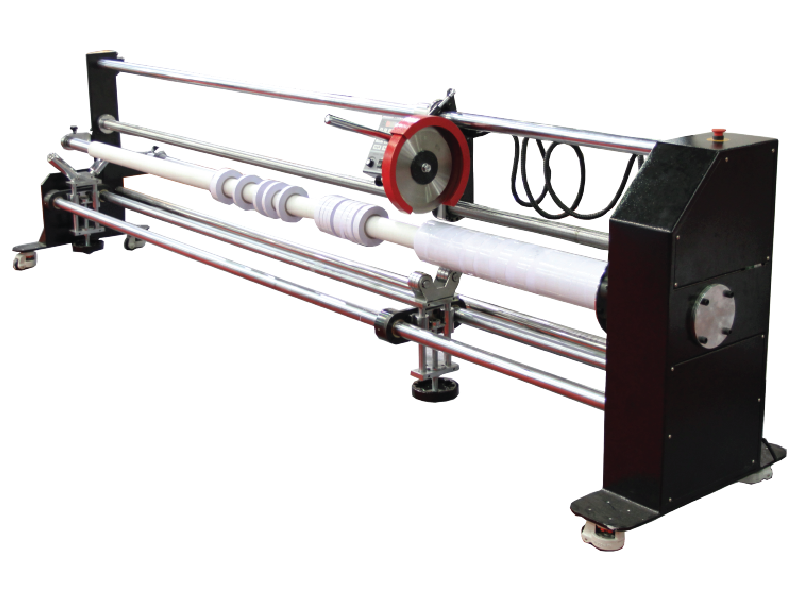

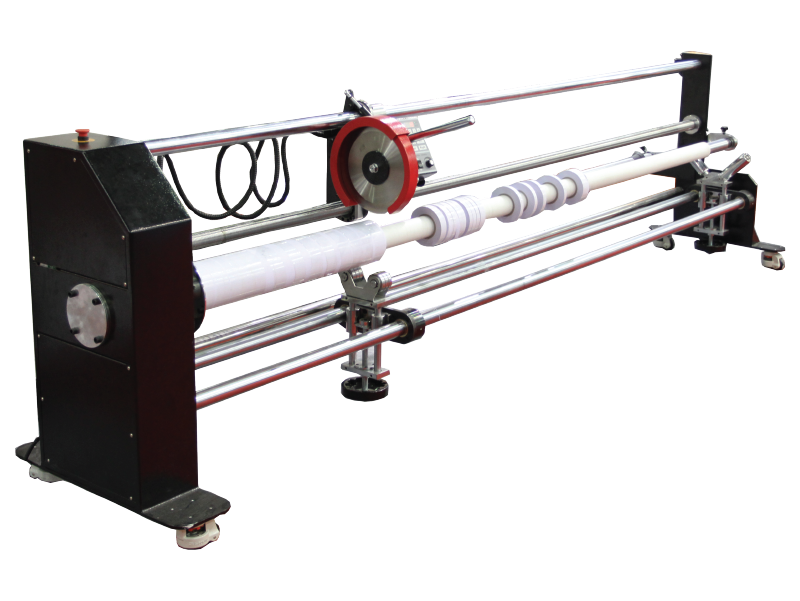

Roll Slitter - RS

Introduction

A roll slitter, also known as a slitting machine or slitter rewinder, is a specialized piece of equipment used to cut large rolls of material into narrower rolls. This process is common in industries that deal with materials such as paper, plastic films, textiles, metals, and laminates. The primary purpose of a roll slitter is to convert large master rolls into smaller, more manageable sizes for further processing or end-use.

Roll Slitters Features

Rolls fastened by air expanding system

2″ & 3″ exchangeable core for 1.8m / 3″ core for 3.2m

PE protection tube for blade

Silent air compressor

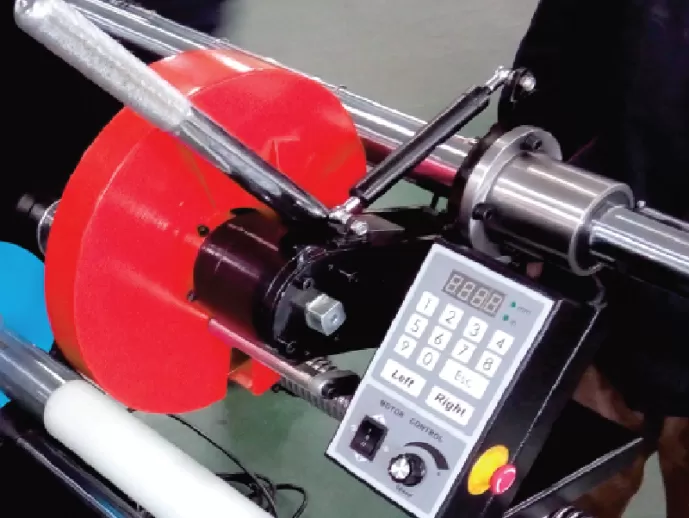

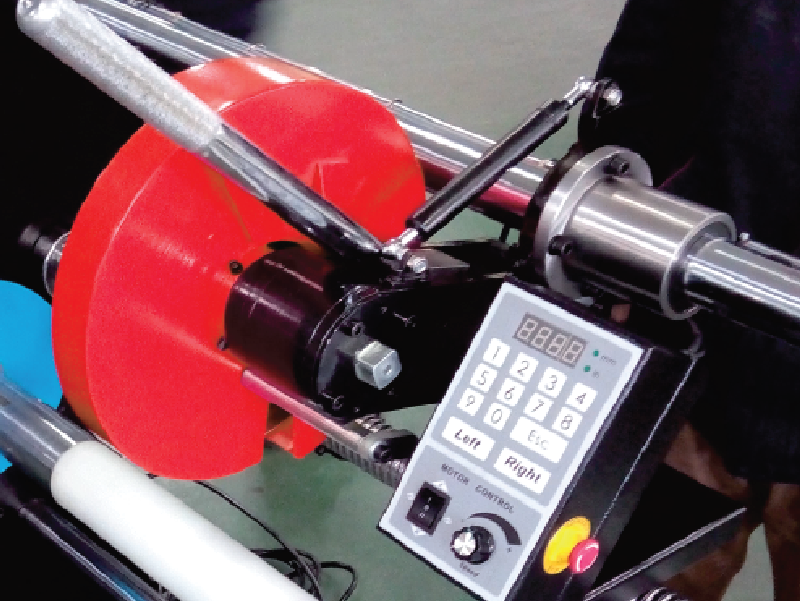

Digital Simple user-friendly control panel

Accurate travelling distance setting

Available to rewind from jumbo roll to small roll

Position of blade can be set manually or automatically

Blade Protection

Roll Slitting Machine Specifications

Roll Slitter - RS

RS Series

Slitting wide rolls into needed widths

Applicable Materials: Banner / Flex

/ Mesh / Tarpaulin / Reflective Sheeting

/ Self-adhesive Vinyl / Foam Adhesive Tape

/ Double-sides Adhesive Tape / Application Tape

How a Roll Slitter Works

Unwinding:

The master roll of material is placed on an unwinding stand, which feeds the material into the slitting machine.

Slitting:

The material passes through a series of knives or blades, which cut it into narrower strips.

There are different types of slitting methods, including rotary slitting and razor slitting.

Rewinding:

The slit material is rewound onto new cores, creating smaller rolls of the desired width.

Rewinding tension and speed are carefully controlled to ensure the quality and uniformity of the finished rolls.

Types of Roll Slitters

Manual Roll Slitters:

Operated by hand, suitable for low-volume or specialty applications.

Semi-Automatic Roll Slitters:

Requires some manual intervention but automates parts of the slitting process.

Suitable for medium-volume production.

Automatic Roll Slitters:

Fully automated with minimal manual intervention.

Ideal for high-volume production, offering high efficiency and precision.

Roll Slitter Applications

Packaging Industry:

Slitting plastic films, foils, and laminates for packaging materials.

Paper Industry:

Converting large rolls of paper into smaller rolls for printing, labeling, and other uses.

Textile Industry:

Slitting fabrics and nonwoven materials.

Metal Industry:

Cutting metal foils and thin sheets into narrower strips.

Label Manufacturing:

Producing rolls of labels from larger sheets.
