Slitting Machine
Eastsign supplies roll, fabric and wide-format slitting machines for flexible materials used in signage, textile and converting workflows. Our current range includes equipment for cutting complete wound rolls, processing roll materials and handling extra-wide substrates.
The right slitter depends on more than material width. The incoming roll format, roll diameter, core size, material construction, required finished widths and acceptable edge condition all affect machine selection. Compare the available machine routes below or send us your roll details for a model recommendation.
We provide fast quotation and one-stop customization service.
Processing fabric or another flexible web? This textile slitting machine selection guide explains how material behaviour, roll architecture, blade method and downstream requirements affect the correct equipment route.
Slitting machine can describe several different machine structures. A machine that divides a complete wound roll into narrower sections does not perform the same operation as a slitter that unwinds a parent roll, cuts the moving web and rewinds the finished lanes.
Before comparing models, identify the condition of the incoming roll and the format required after slitting. This helps avoid selecting a machine based only on a broad product name.
| Machine route | What it is designed to do | Suitable buying requirement | Main details to confirm |
|---|---|---|---|

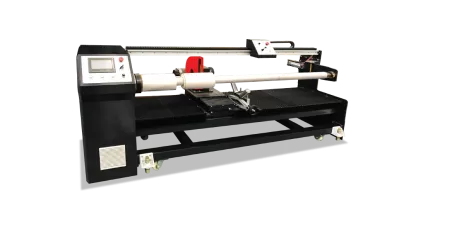

| Fabric Slitter | Divides suitable wound fabric or flexible-material rolls into narrower widths | I have a finished roll and need several narrower roll sections. | Material construction, roll width, roll diameter, roll weight, core and target widths |

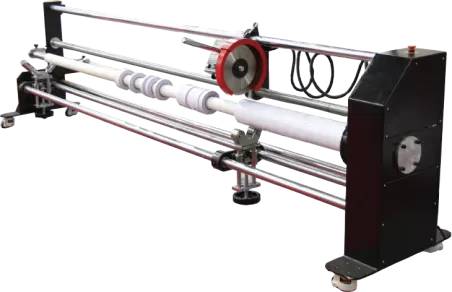

| Roll Slitter Machine | Processes compatible roll materials where controlled cutting and roll handling are required | I need to convert a wide roll into narrower widths and may require rewinding. | Material path, unwind and rewind requirements, web tension, finished-roll format and slit widths |

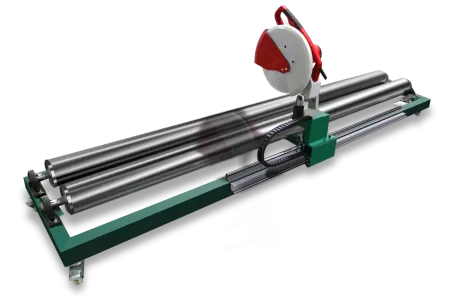

| 5m Wide-Format Slitter | Slits extra-wide-format substrates | I need to process an extra-wide roll that exceeds standard working widths. | Maximum roll width, roll diameter, material support, blade position and installation space |
| Table Slitter | Cuts compatible wound materials in a supported table-style configuration | I need a compact roll-slitting solution for vinyl, banner, tape or reflective media. | Roll diameter, core size, roll weight, working width and material compatibility |
Machine names may overlap between industries. Confirm the actual material path and output-roll requirement before treating a model as a slitter rewinder, whole-roll slitter or table slitter.
Eastsign’s published slitting-machine range includes applications for a variety of flexible roll materials. Compatibility must still be checked at model and configuration level because materials with the same general name can behave differently during cutting.
Banner and flex materials
Mesh
Tarpaulin
Reflective sheeting
Self-adhesive vinyl
Application tape
Photo paper
Compatible fabrics
Selected non-woven materials
Coated textile materials
Flexible rolls used in signage and related production
Foam adhesive tape
Double-sided adhesive tape
Compatible pressure-sensitive materials
A material name alone does not guarantee a suitable cutting result. Thickness, coating, adhesive, fibre construction, roll hardness, previous lamination and storage conditions can affect blade performance, edge quality and roll stability.
If your material is not listed, send a material specification, photos and a representative sample for technical review instead of assuming compatibility.
1. Incoming Material
2. Roll Width and Diameter
3. Roll Weight and Core
4. Required Finished Widths
5. Material Path
6. Finished-Edge Requirement
7. Width Tolerance
8. Downstream Process
When comparing slitting machine manufacturers or suppliers, review the proposed configuration against your actual roll rather than comparing product names alone.
A useful quotation should identify the machine model, applicable material, incoming roll limits, core requirements, cutting method, standard and optional functions, power supply and any points that still require a material trial.
